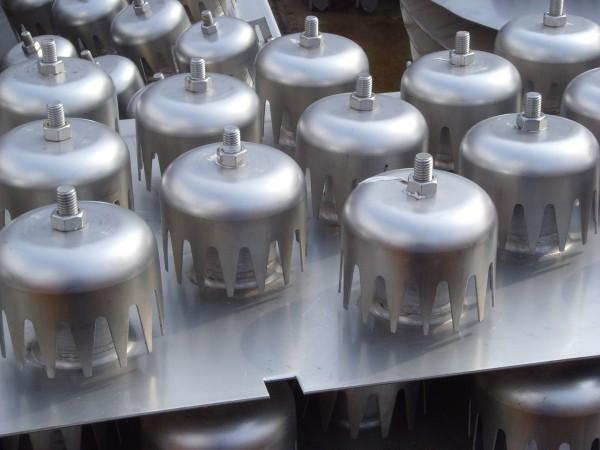

Bubble cap trays

Place of Origin : China

Brand Name : EH

Certification : ISO9001：2000

Model Number : Bubble cap trays-001

MOQ : 20pcs

Price : Negotiable

Packaging Details : Ply-Wooden Cases

Delivery Time : 15-30 Days

Payment Terms : T/T,L/C

Supply Ability : 10000 pcs per Month

Contact Now

Bubble cap trays

Specifications

1.Bubble Cap tray;
2.High efficiency tray;
3.Extensive use;
4.products are high quality
5.Best price and excellent service

Conventional bubble cap trays are well-proven in applications with following conditions:

1.Application: preferred in low gas quid loading conditions, low leakage rates;
2.available in different sizes and shapes;
3.liquid tight design possible;
4. favorable for low liquid loads;
5.large loading range for vapor load;
6.continuous liquid hold up;

category of Materials		Class I (Q235-A)			Class II (0Cr18Ni9)
category of Materials
Name
Nominal diameter (DN)		80	100	150	80	100	150
Outside diameter of bubble cap D1× Wall thickness S1		80×2	100×3	150×3	80	100×1.5	150×1.5
outside diameter of top of bubble cap D3		—	—	152	—	—	152
Outside diameter of chimney D2× Wall thickness S2		57×3.5	70×4	108×4	57×2.75	70×3	108×4
Total height H1		95	105	107	95	105	107
Height of chimney H2		57	62	64	57	62	64
Height of bubble cap H3		65	75	73	65	75	73
Height from the top of bubble cap to slot H4	1	40	45	—	40	45	—
	2	35	42	—	35	42	—
	3	30	38	—	30	38	—
